Handmade Ski Bike

Mar 10, 2011 at 22:30

I was given the opportunity during my senior year of high school to design and build anything I wanted (obviously within reason), so I chose a downhill ski bike. With a bit of research and trial and error, I have managed to successfully cut, mill, grind, and weld my own ski bike.

Living in the Bay Area makes it hard to get to snow easily, but the challenge and the potential award kept me working hard on my ski bike. To tell you the truth, it's kind of weird calling it a "bike" as a bicycle by definition has 2 wheels. I guess I could call this (and other contraptions like it) a "triski", but there is something funky about that...

Starting 6 months ago with a few rough sketches and ideas, I was able to whip together a set of scale drawings. Having never built anything like this before, everything was based on logic and hopes that it would work out. I had seen North Legion's ski bikes a couple years back, so I decided to base the rear ski assembly off their SMX bike. I really wanted to make it unique so I added a few twists of my own. The "Skewed Parallelogram Assembly" allows for the outer ski to carve harder than the inner one. In theory this would allow for a bit more of a "bite" on the edges without losing stability. While this was all great in theory, I had no tests to back it up. So with one shot at getting it correct, I fired up the lathe.

Over the course of the 6 months I tried to document my progress. While there are some gaps, I was able to cover most of the main assemblies. If you want to see more photos of the project, check out the link to the album at the bottom.

Initial Scale Drawings:

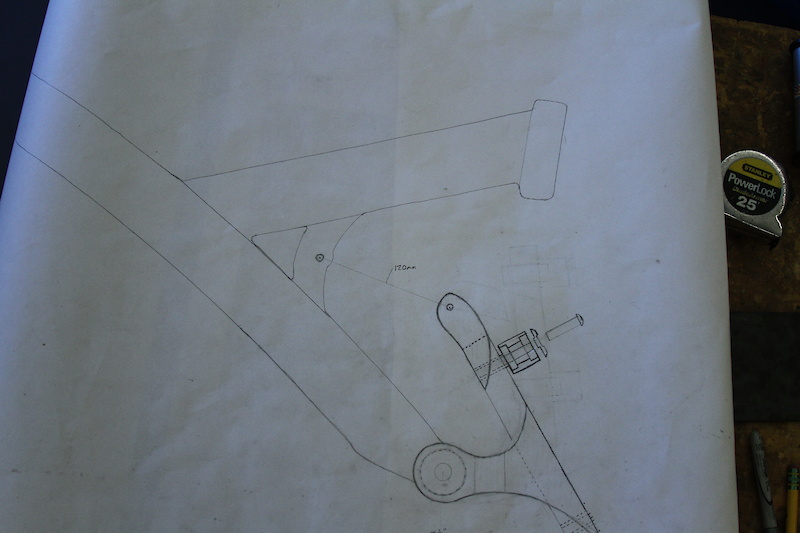

Frame and Swingarm

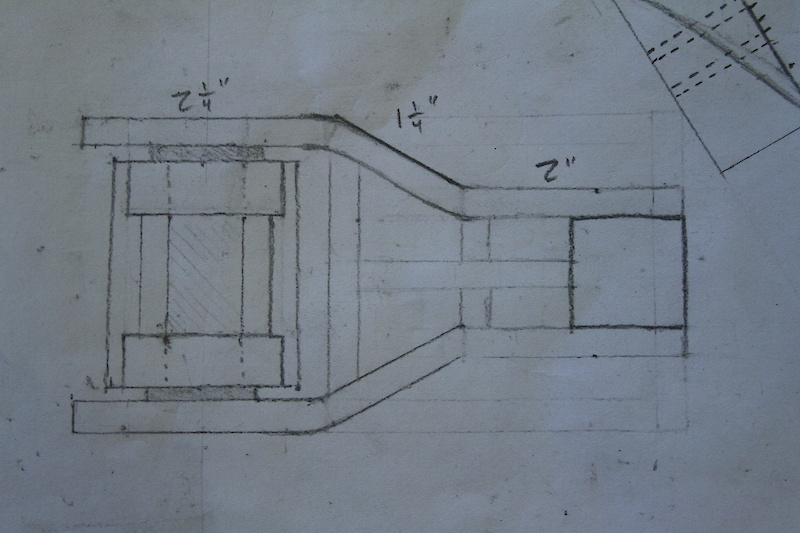

Main Pivot Blowup

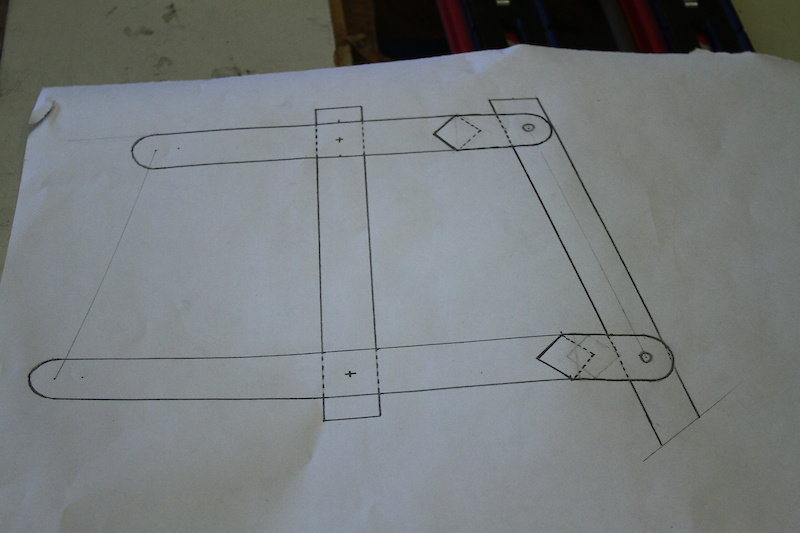

Rear-Skewed Parallelogram

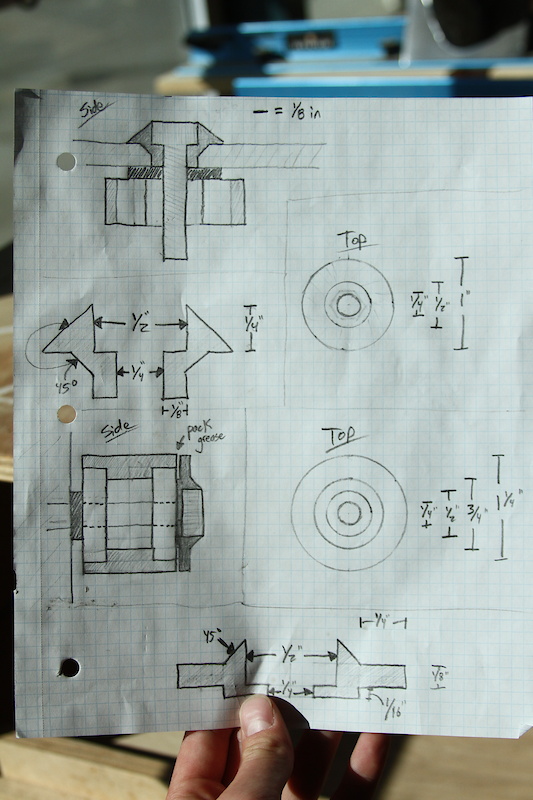

Main Pivot Caps and Sub-Pivot Covers (did not end up using the covers)

First Cuts:

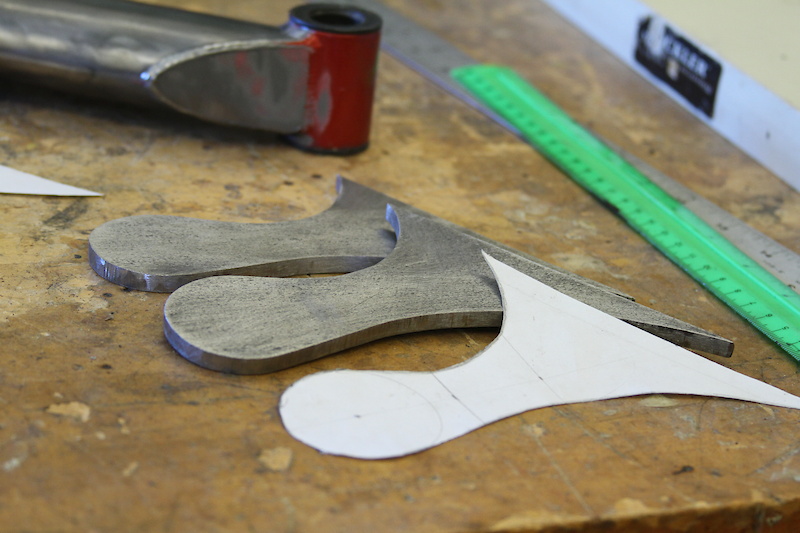

Main Pivot Plates (before bending)

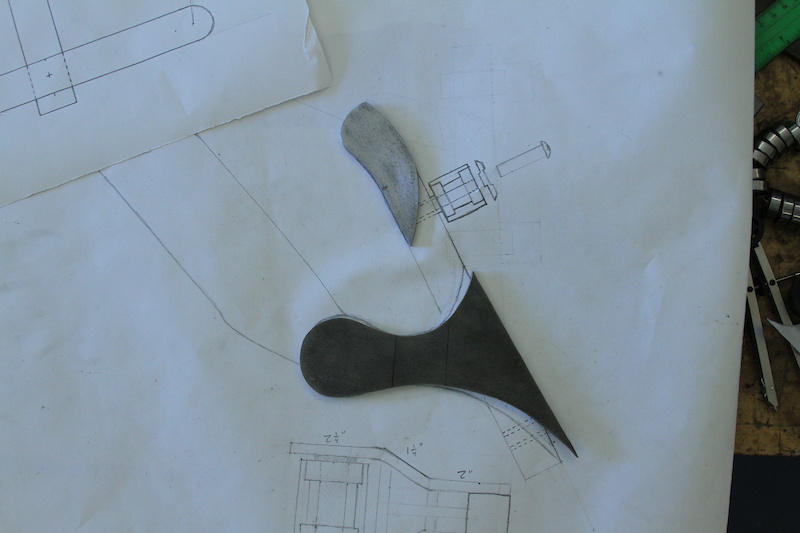

Main Pivot Plate and Rear Shock Mount Plate

Main Pivot Assembly:

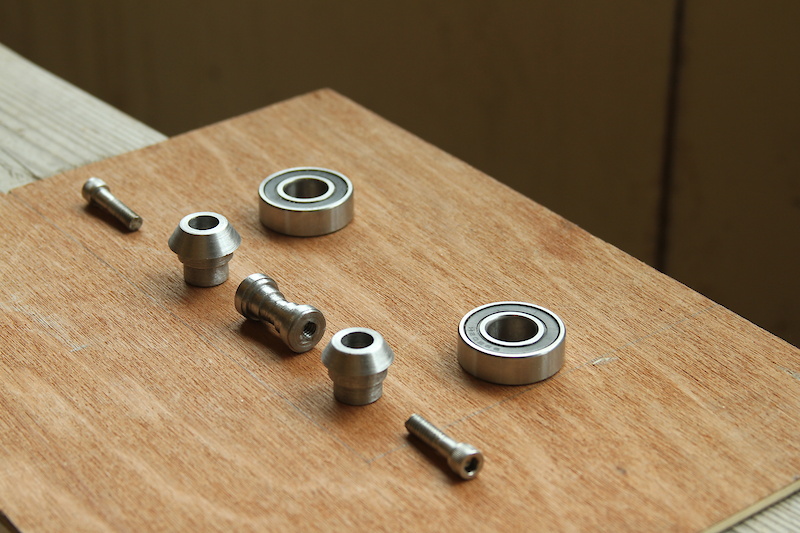

Main Pivot Caps and Hardware (milled from steel rod-stock)

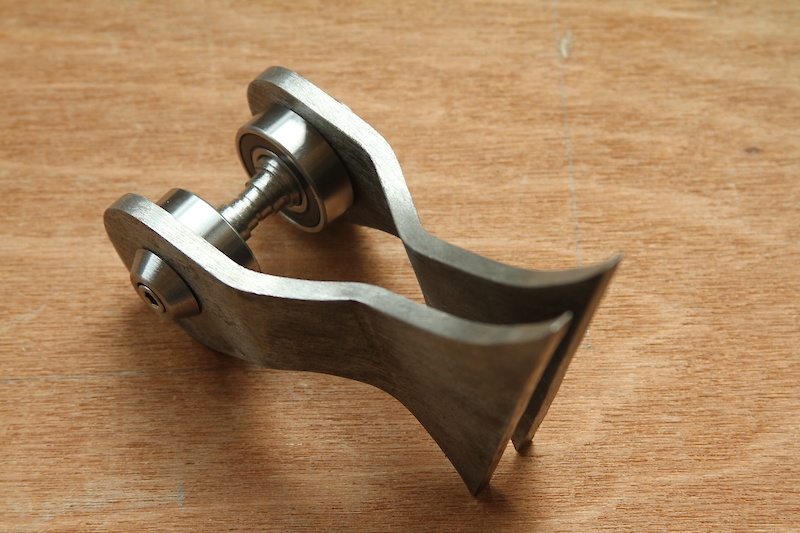

Main Pivot Plates (post bending) and Full Assembly

Layout for Welding:

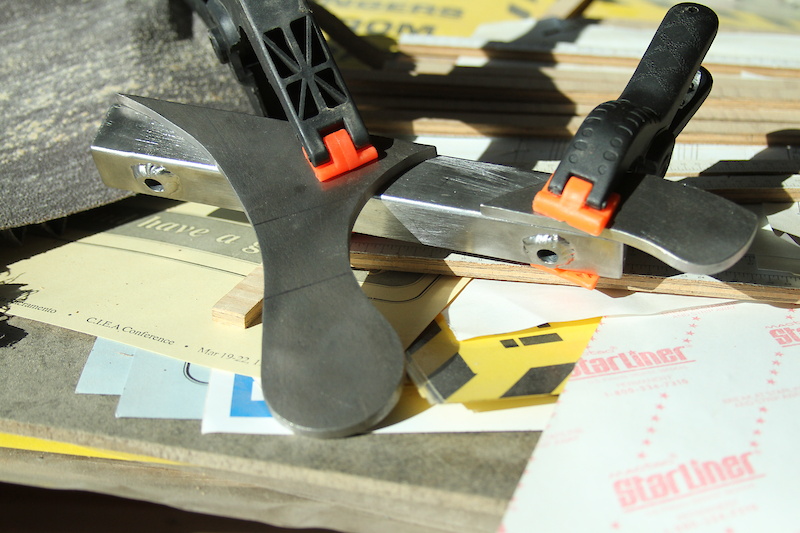

Plates Clamped to Central Tubing

It all started to come together:

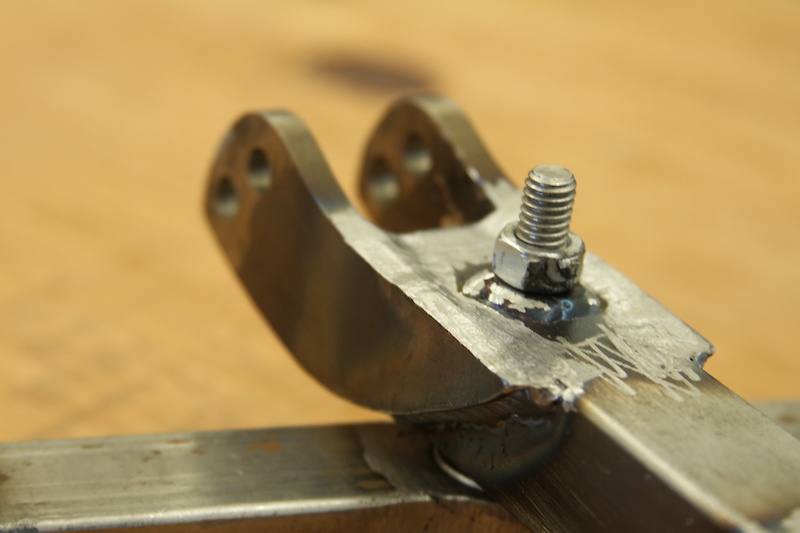

Shock Mount Plates Welded On

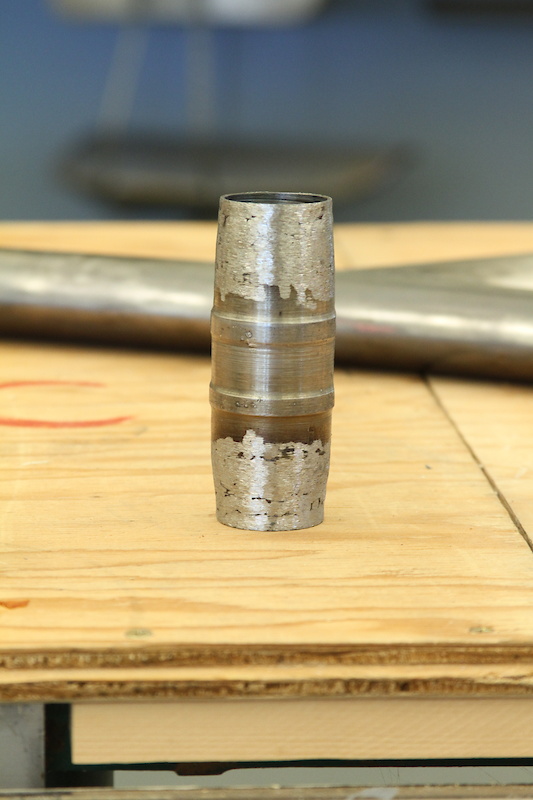

Headtube

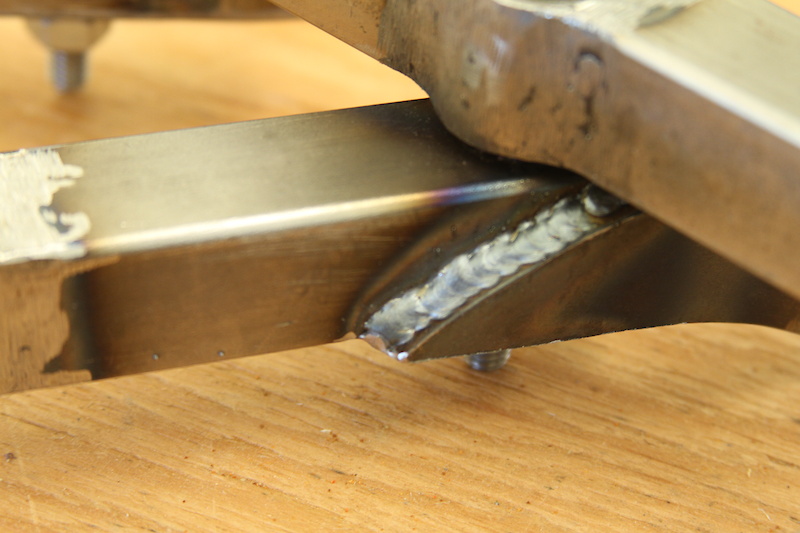

Some Solid Looking Welds

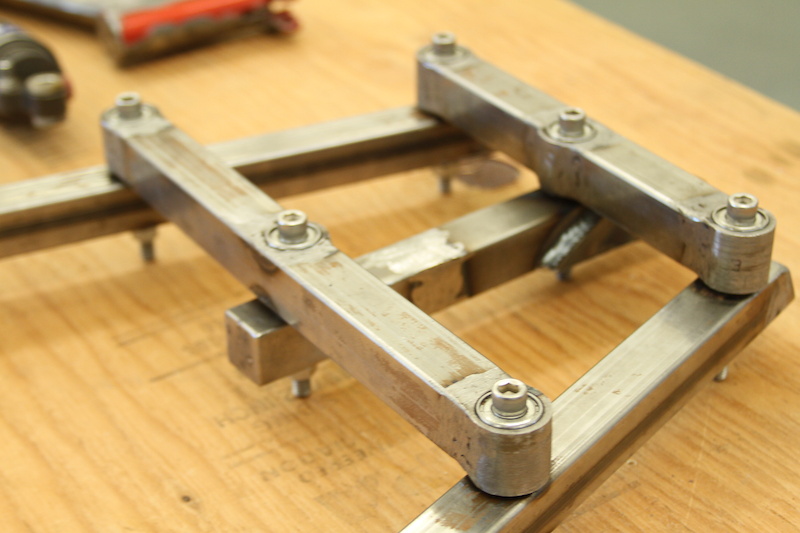

Rear Assembly Coming Together

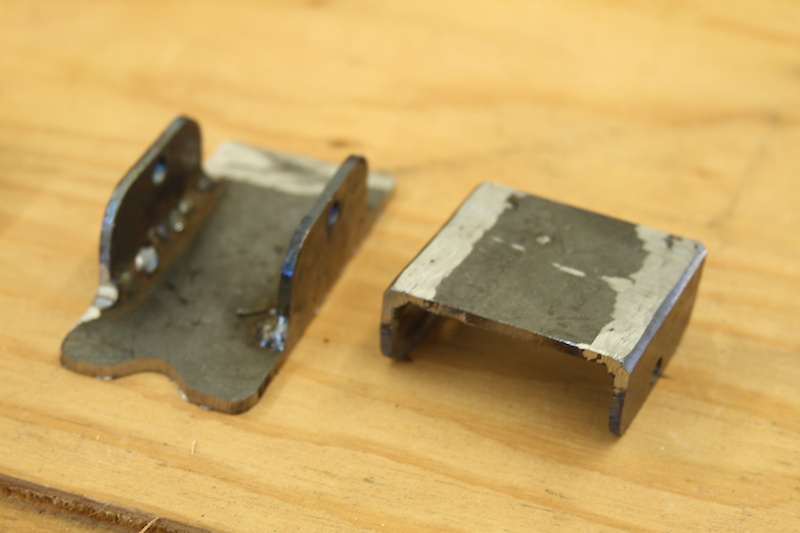

Rear Ski Interfaces/Pivots

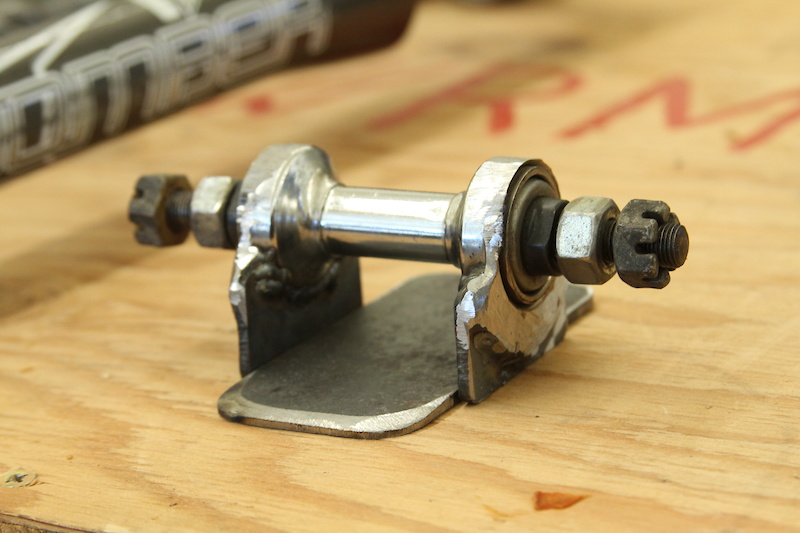

Front Ski Interface/Pivots

Ready for Assembling/Welding:

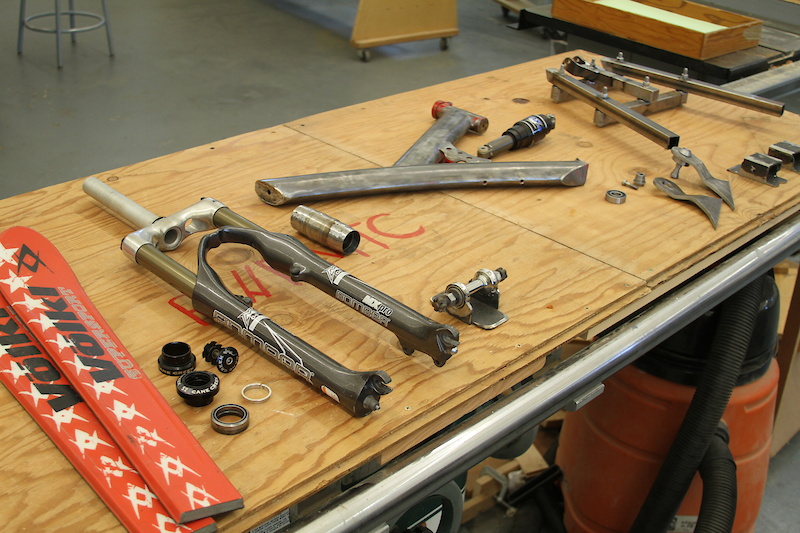

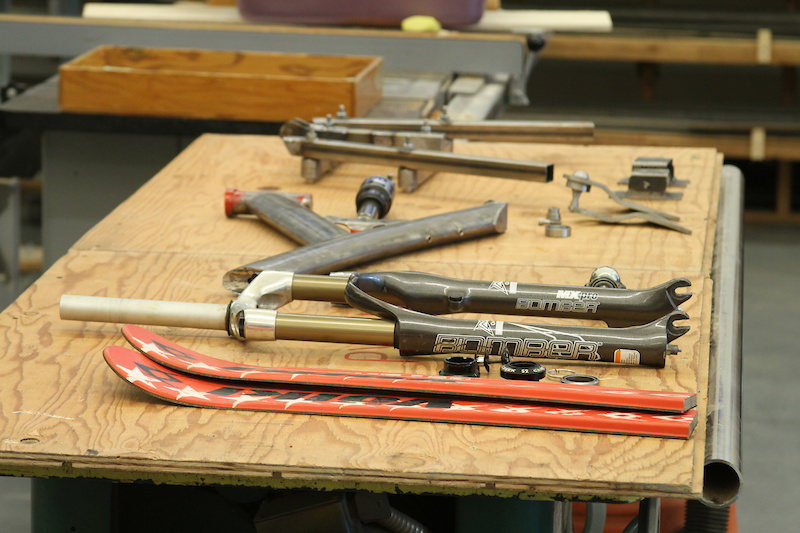

All the Part Laid Out

I ended up using a different Fox Float than pictured here

Painting:

Getting Ready For Some Paint

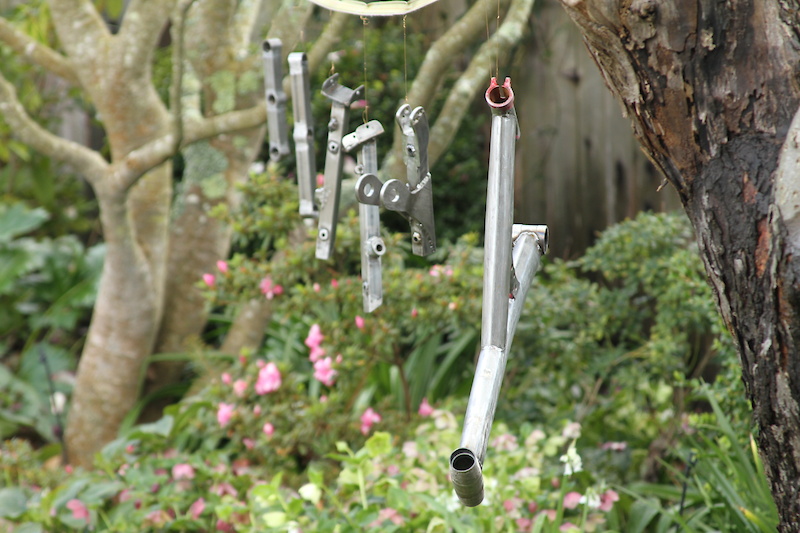

Sanded and Prepped for Painting

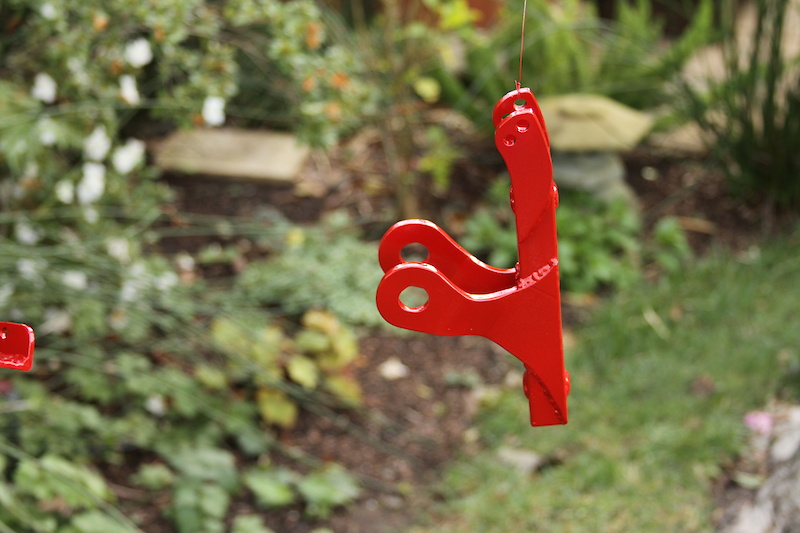

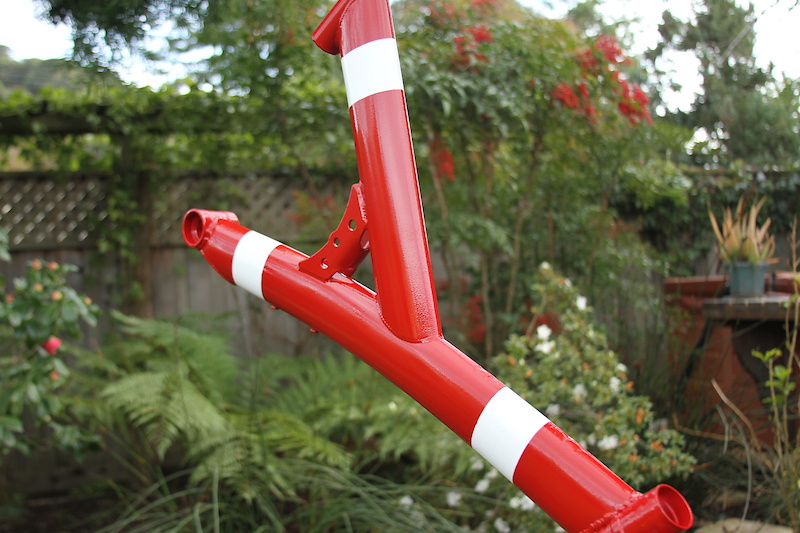

Finished Main Swingarm

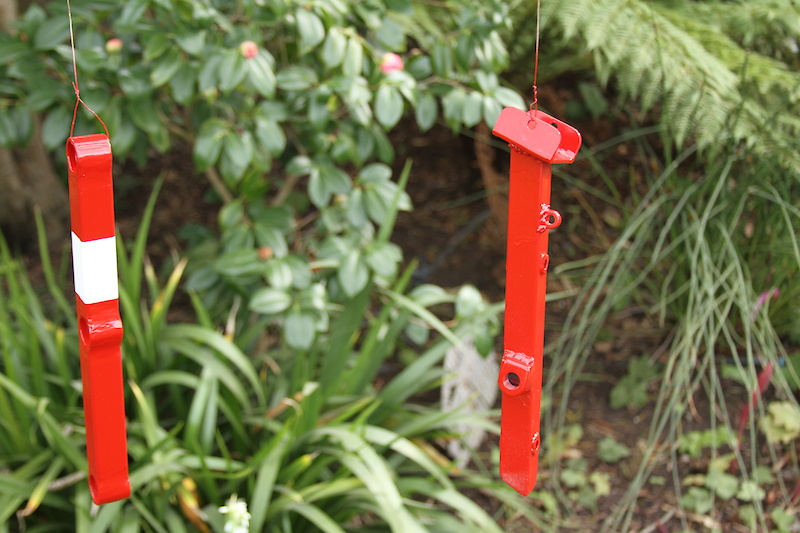

Parts of the Skewed Parallelogram

"Firetruck Red" With White Stripes and a Nice Gloss Coat

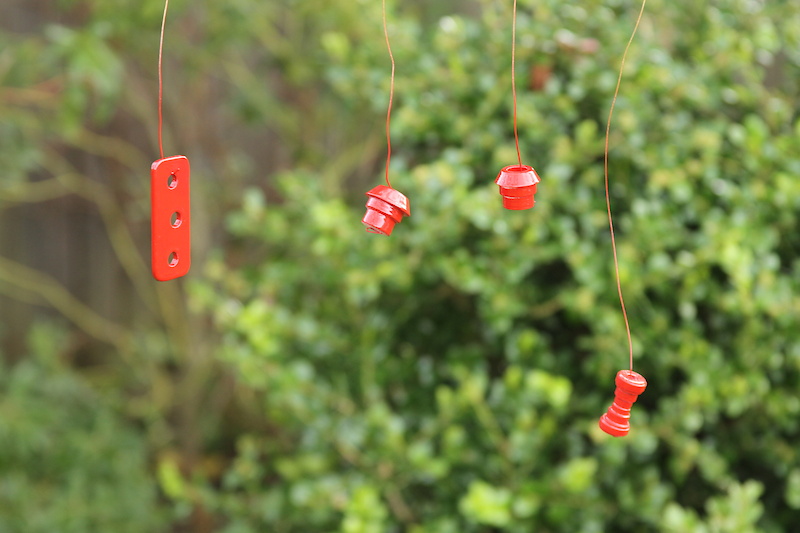

Small Hardware

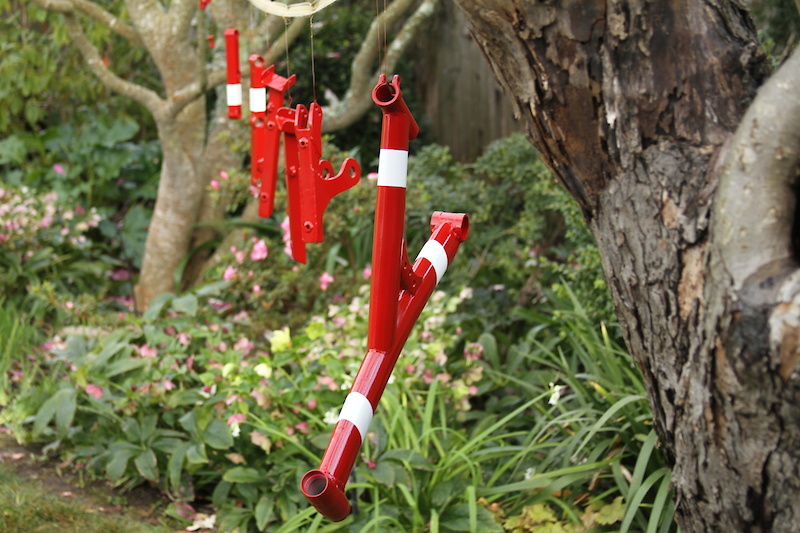

5+ Hours Later it's Time to Let it All Dry

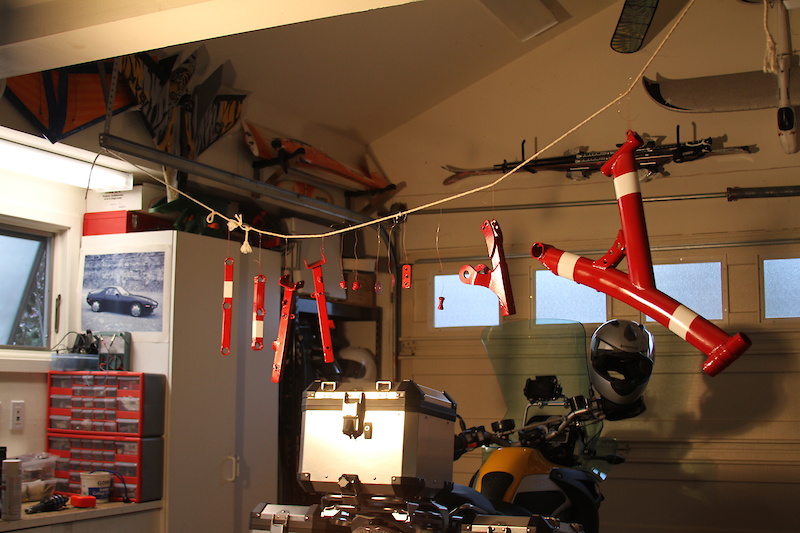

Drying Overnight

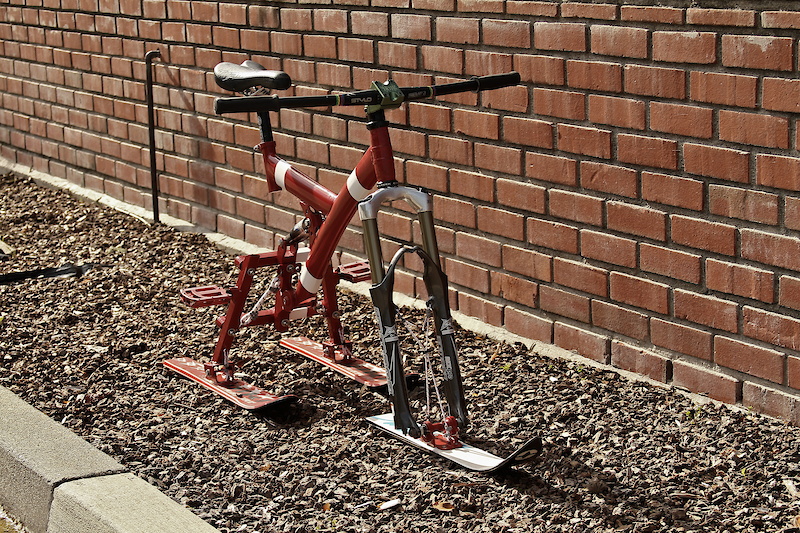

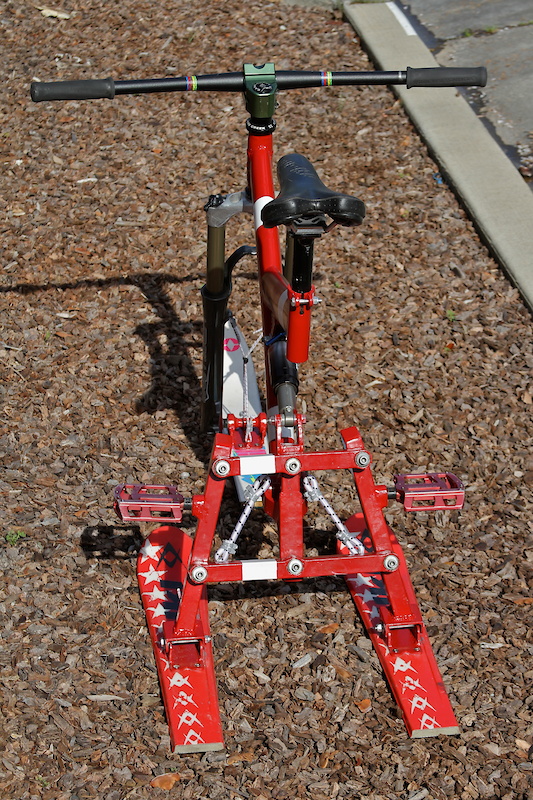

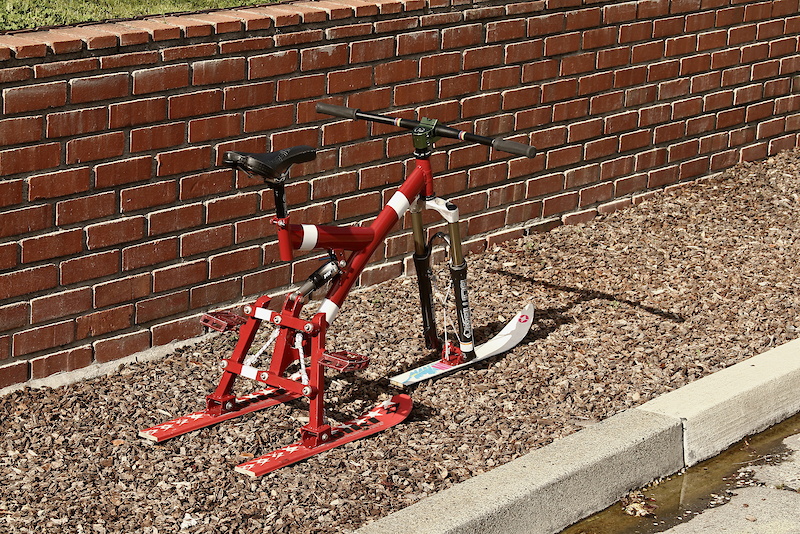

Finished Product:

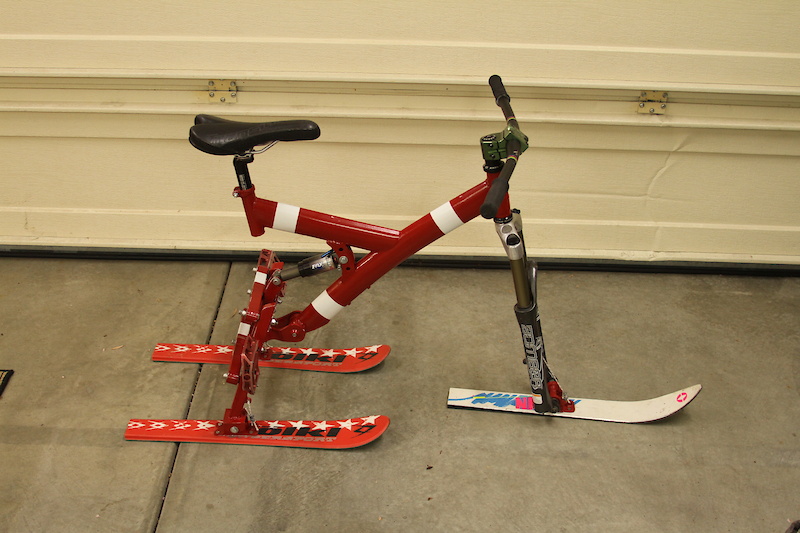

While the parts initially were nothing special... I was impressed with how it turned out.

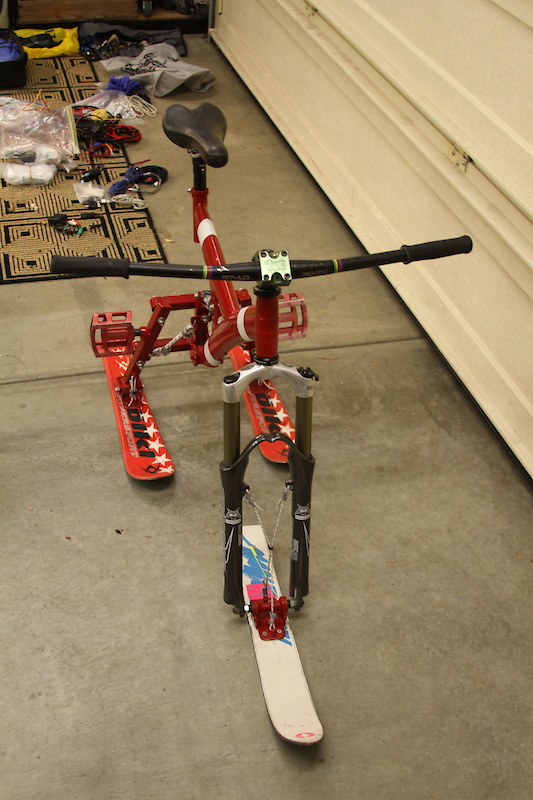

Transition Bikes pedals, stem, and saddle

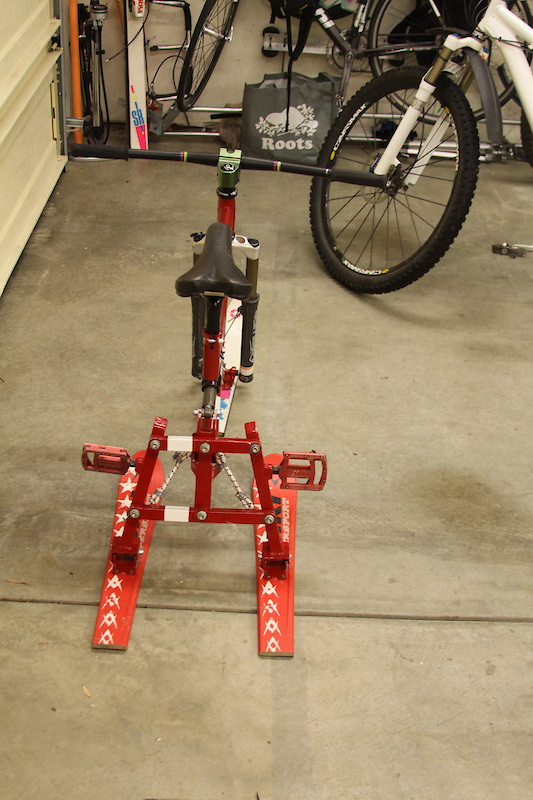

The pedals appear crooked, but it's just the angle

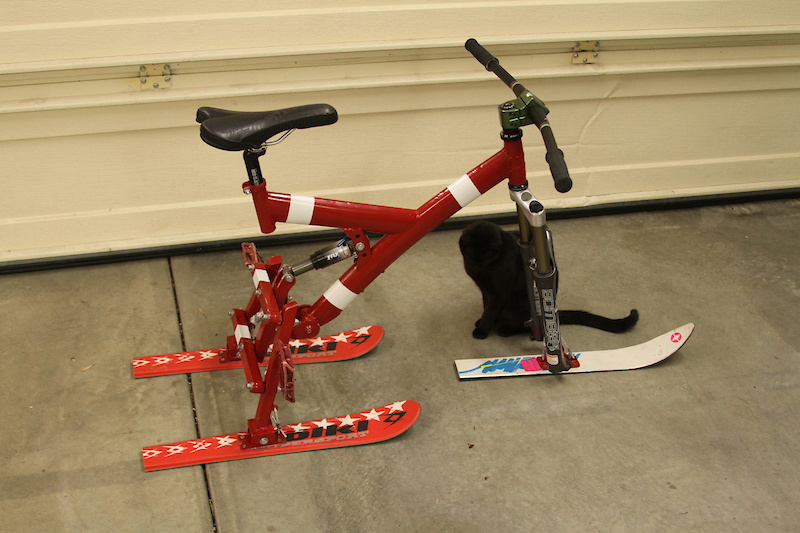

Marley doing the final check

Some iPhone action shots:

Thank you Tam Bikes, Mikes Bikes, and Transition Bikes. There is no way I could have completed this without you!

Complete Photo Album.

transitionbikes.com
tambikes.com
mikesbikes.com

-Sam Pannepacker
